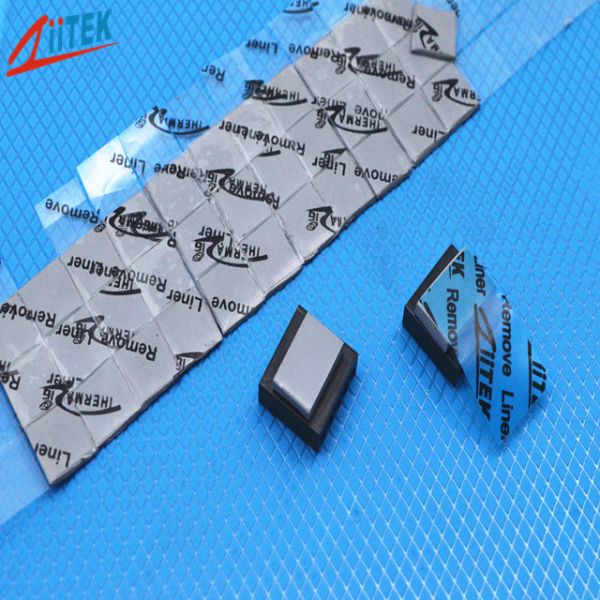

Electrically Isolating Multiple Thickness Factory Thermal Pad Pad For Electric Products

  • 1
  • 2

Brand Name : ZIITEK

Model Number : TIF500-50-11ES Series

Certification : UL and RoHs

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Supply Ability : 100000pcs/day

Delivery Time : 3-5 work days

Packaging Details : 1000pcs/bag

Products name : Electrically Isolating Multiple Thickness Factory Thermal Pad Pad For Electric Products

Hardness : 10 Shore 00

Application : Electric Products Heat Dissipation

Keywords : Thermal Pad

Thickness : 0.04inch~0.20inch/(1.0mm)~5.0mm)

Color : Gray

Continuous Use Temp : -45 to 200℃

Sample : Sample free

Thermal conductivity : 5.0W/m-K

Contact Now

Electrically Isolating Multiple Thickness Factory Thermal Pad Pad For Electric Products

The TIF®100-50-11ES Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> RoHS complian

> UL recognized

> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar

Typical Properties of TIF®500-50-11ES Series
Property Value Test method
Color Gray Visual
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range(inch/mm)

0.02"~0.03"/

(0.50mm)~(0.75mm)

0.04"~0.20"/

(1.0mm)~(5.0mm)

 ASTM D374
Density 3.3g/cm³ ASTM D792
Hardness 10 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 3.8 MHz ASTM D150
Volume Resistivity ＞1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Thermal conductivity 5.0 W/m-K ASTM D5470

Product Specification


Standard Thickness: 0.02"(0.50 mm)~0.20” (5.00 mm) with increments of 0.01 inch (0.25 mm).
Standard Size: 16" ×16" (406 mm×406 mm).


Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIFseriesis available in custom shapes and various forms.For other thicknessesormore
information, please contact us.

Electrically Isolating Multiple Thickness Factory Thermal Pad Pad For Electric Products

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
